1. Scope

This document defines a set of Objects to be used in conjunction with the Lightweight M2M enabler in order to interact with event logs within a device.

The LwM2M object provides a standardised interface to query logs within a device. The actual implementation of the underlying log functionality is outside the scope of this TS.

2. References

2.1. Normative References

2.2. Informative References

3. Terminology and Conventions

3.1. Conventions

The key words "MUST", "MUST NOT", "REQUIRED", "SHALL", "SHALL NOT", "SHOULD", "SHOULD NOT", "RECOMMENDED", "MAY", and "OPTIONAL" in this document are to be interpreted as described in [RFC2119].

All sections and appendixes, except "Scope" and "Introduction", are normative, unless they are explicitly indicated to be informative.

3.2. Definitions

See also [3GPP-TS_21.905] for 3GPP-specific definitions.

3.3. Abbreviations

See also [3GPP-TS_21.905] for 3GPP-specific abbreviations.

4. Introduction

This specification enables the transfer of log information from a device to an LwM2M server.

4.1. Version 1.0

V1.0 of the specification covers:

1. Communication of generic log information

4.1.1. Version 1.0.1

4.2. Version 2.0

5. Use cases

5.1. Controlling the recording of log data

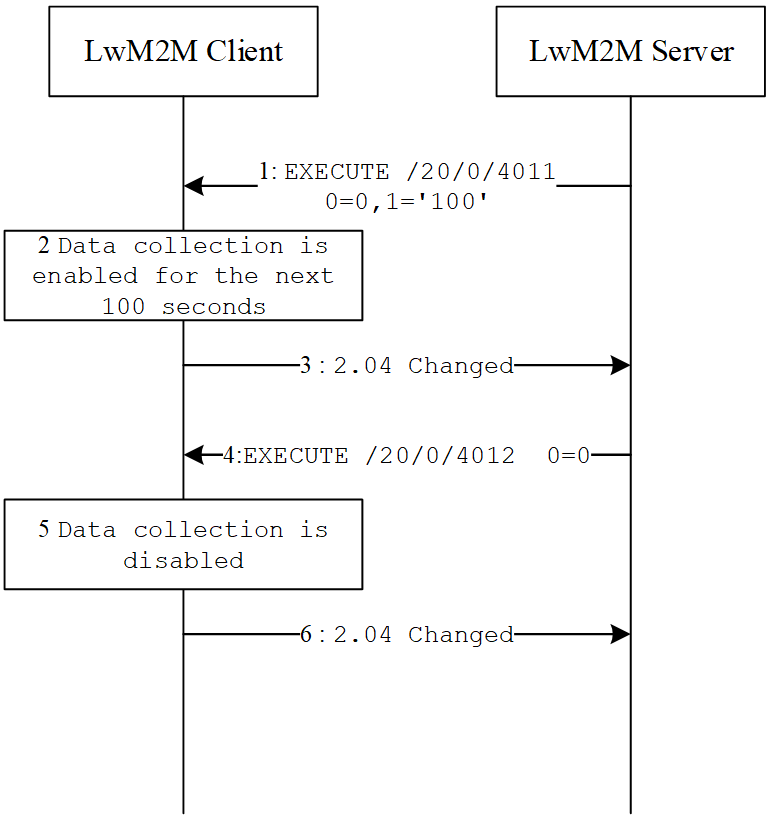

This uses the LogStart/Stop resource, 4011/4012

1. The LwM2M Server sends an EXECUTE command to the LwM2M Client on the device specifying

• the IDs of the Log Object and its instance (/20/0),
• the Log Start Resource ID (4011) to indicate to start the Data Collection logging process and
• the payload containing the arguments of the EXECUTE command : namely argument 1 for indicating a Data Collection Period of 100s is requested, and argument 0 (which could be omitted) for indicating that the logging process is started with a virgin Data Collection

2. The LwM2M Client enables log data collection for the next 100 seconds
3. The LwM2M Client sends successful response to LwM2M Server.
4. The LwM2M Server sends an EXECUTE command to the LwM2M Client on the device specifying

• the IDs of the Log Object and its Instance (20/0),
• the Log Start Resource ID (4012) to indicate to stop the Data Collection logging process and
• the payload containing the argument 0 (which could be omitted here) of the EXECUTE command for indicating that Data Collection is preserved when the logging process is stopped

5. The LwM2M Client disable log data collection
6. The LwM2M Client sends successful response to LwM2M Server.

5.2. Reporting the logging status

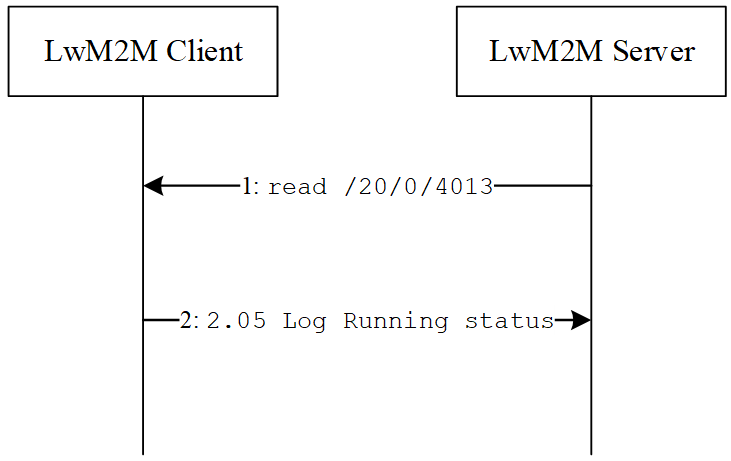

This uses the LogStatus resource 4013. The LogStatus could be reported either by a READ from the LwM2M Server or NOTIFICATION from the LwM2M Client. This use case introduces the READ for example.

1. The LwM2M Server sends a read request to the LwM2M Client running on the device specifying

• the IDs of the Log Object and its instance (/20/0),
• the LogStatus Resource ID 4013 to indicate to get the log status information.

2. The LwM2M Client returns the log running status to the LwM2M server

5.3. Collecting the log data

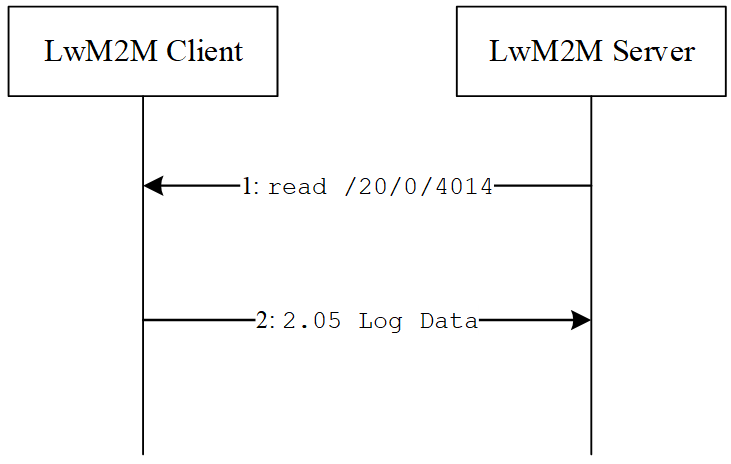

This uses the LogData resource, 4014

1. The LwM2M Server sends a read request to the LwM2M Client running on the device specifying:

• the IDs of the Log Object and its instance (/20/0),
• the LogData Resource ID 4014 to indicate to get the log data information.

2. The LwM2M Client returns the log data to the LwM2M Server

5.4. Categorizing the log data

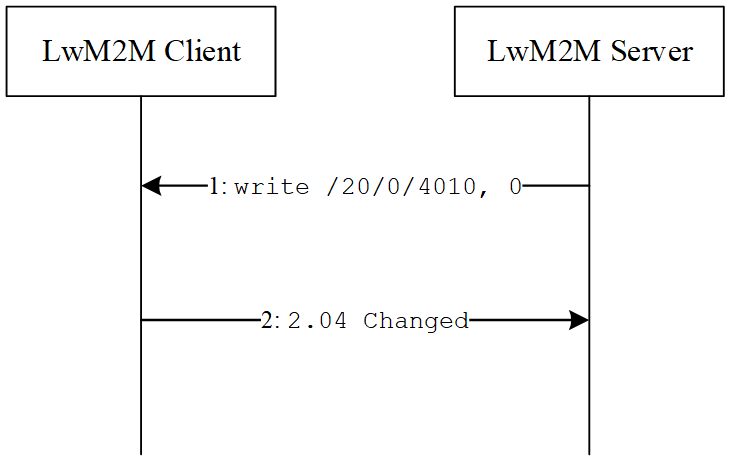

This uses the LogClass resource, 4010

1. The LwM2M Server sends a write request to the LwM2M Client specifying:

• the IDs of the Log Object and its instance (/20/0),
• the Log Class Resource ID 4010 to indicate to set the log class information,
• the payload containing the argument 0 of the EXECUTE command for indicating that only generic log class should be collected.

2. The LwM2M Client sends response to the LwM2M Server with the changed result.

6. LwM2M Object: Event Log

Description

The Event Log Object is a multiple Instances Object defined for logging data in a straightforward and generic way. The Resources of that Object are based on the OMA LwM2M set of reusable Resources dedicated to logging event activity.

Object definition

Resource definitions

7. Guidance on how to use the resource, the generic object

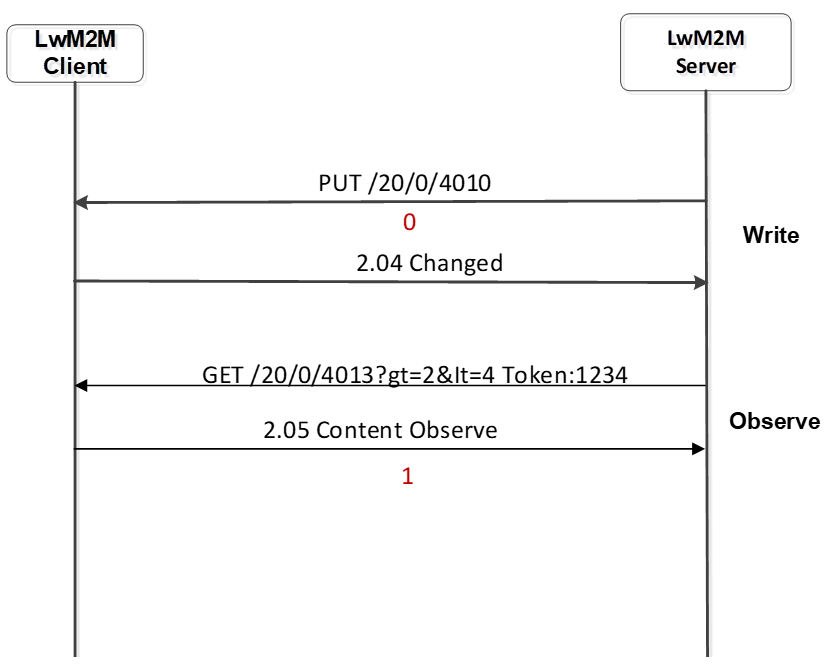

• Configuration phase: the LogClass is set, the OBSERVE on LogStatus is requested

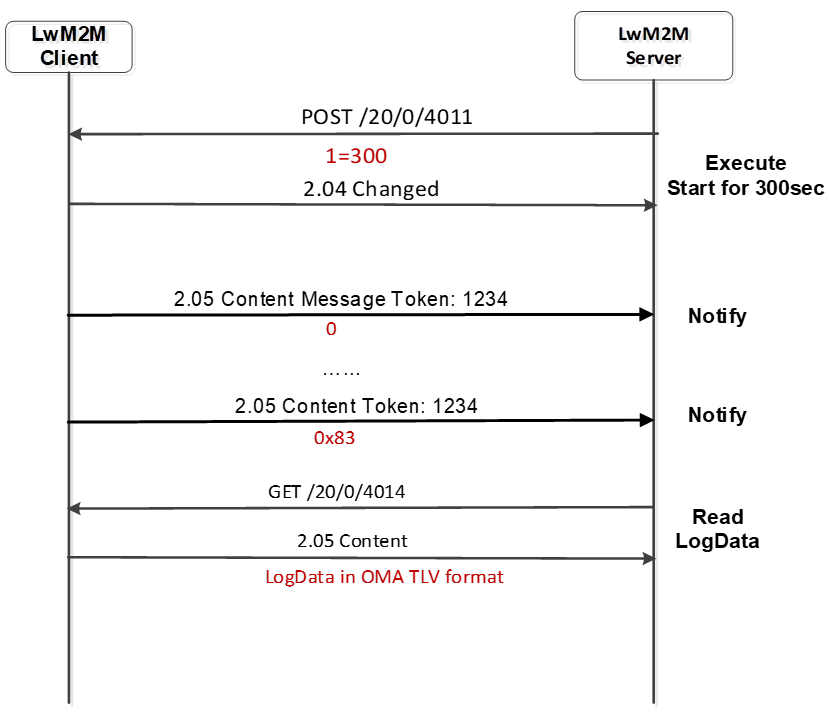

• Active phase :

• The Data Collection process is started with a period of 5 minutes (300 sec)

• Some LogStatus notification take place for LwM2M Server Analysis

• When Data Collection logging ends (period expires), the LwM2M Server can retrieve the LogData information (the data format is pre-configured between the Client and the Server)
